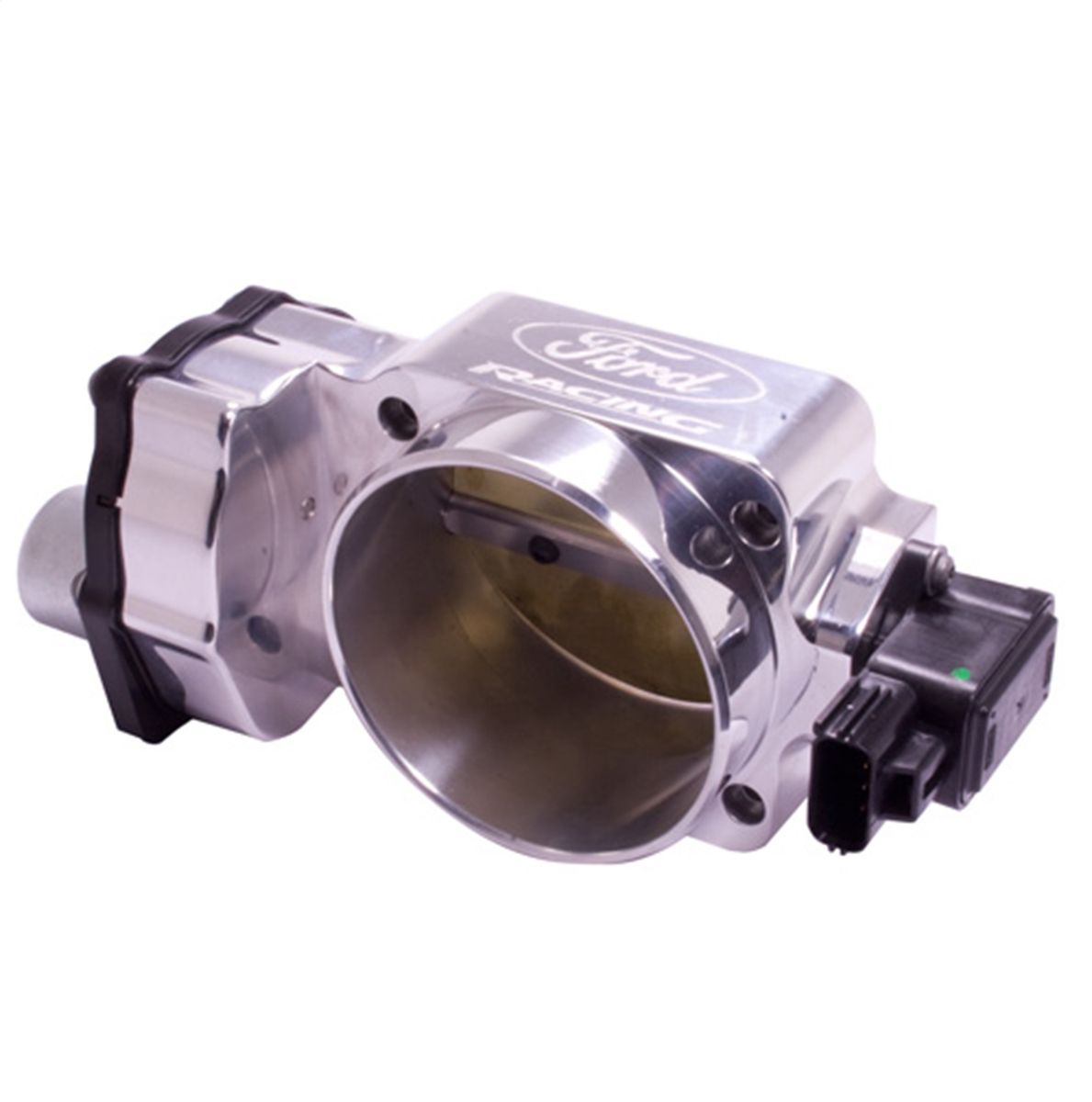

5.0L 4V 90 MM THROTTLE BODY - 2011-2014 MUSTANG

90MM Billet Aluminum Throttle Body

Fits: 2011–2014 Mustang GT / 2012–2013 Boss 302 with stock 80mm throttle body Not compatible with 2015 Mustang GT

CFM Rating: 1132 CFM (with adapter: 1101 CFM) Stock 80mm throttle body: 913 CFM*

Key Features:

• 4" diameter leading edge — larger than stock
• Requires use of 4" ID silicone hose adapter or reducer
• 4" air inlet tube recommended for maximum horsepower
• Factory 3.5" air inlet tube requires removal of molded rubber throttle body hose
• Designed for vehicles with electronic throttle control (ETC)
• Includes jumper harness
• Does not include calibration — calibration required

Ford Racing ETC Throttle Body Highlights:

• Factory sensors pre-installed — no need to disassemble original throttle body
• Pre-calibrated for idle air flow using production procedures
• CNC’d Ford Racing logo on housing
• Precision billet construction with tapered inlet for consistent high flow
• Validated through extensive dyno, racing, and street testing
• Polished aluminum finish for premium appearance

Required Adapters:

• M-9474-M50 — For OEM Mustang GT 5.0L 4V Ti-VCT intake (Rotates throttle body ~15° counterclockwise)
• M-9474-M50B — For Ford Racing Boss Intake (M-9424-M50BR)

Additional Notes:

• Engine cover M-9680-M50 fits over throttle body on 5.0L 4V Ti-VCT intake
• Boss Intake M-9424-M50BR can be port-matched to accept throttle body without adapter (requires custom gasket/RTV)
• *All CFM ratings measured at 28" of water on SuperFlow SF-1020 Flow Bench
